QTY 34 New CPS Power Solar Inverters 50/60 kW, 1000 VDC String Inverters 10 year warranty
Description
2020 New CPS Power Solar Inverters 50/60kW, 1000Vdc String Inverters
Wire Box Included
New CPS Power Inverters 50/60kW, 1000Vdc String Inverters for North America
Qty 29 60 K Inverters Model: CPS SCA60KTL-DO/US-480
Qty 5 50 K Inverters Model: CPS SCA50KTL-DO/US-480
Qty 34 Model: CPS SCA50/60KTL-480-WB Standard Wire-Box
Warranty Included on start up !!!!!!

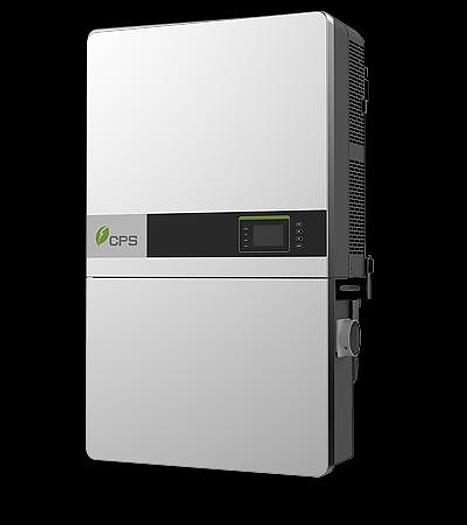

The 50 & 60kW (55 & 66kVA) medium power CPS three phase string inverters
are designed for ground mount, large rooftop and carport applications.
The units are high performance, advanced and reliable inverters designed
specifically for the North American environment and grid. High efficiency
at 98.8% peak and 98.5% CEC, wide operating voltages, broad temperature
ranges and a NEMA Type 4X enclosure enable this inverter platform to operate
at high performance across many applications. The CPS 50/60KTL products
ship with either the Standard wire-box The CPS Flex Gateway enables monitoring, controls
and remote product upgrades
Key Features:
NEC 2017 PVRSS Certified Rapid Shutdown
55 & 66kVA rating allows max rated Active Power @±0.91PF
Selectable Max AC Apparent Power of 50/55kVA and 60/66kVA
NEC 2014/17 compliant & UL listed Arc-Fault circuit protection
15-90° Mounting orientation for low profile roof installs
Optional Flex Gateway enables remote FW upgrades
Integrated AC & DC disconnect switches
3 MPPT's with 5 inputs each for maximum flexibility
Copper and Aluminum compatible AC connections
NEMA Type 4X outdoor rated, tough tested enclosure
UL1741 SA Certified to CA Rule 21, including SA14 FW and SA15 VW
Separable wire-box design for fast service
Generous 1.8 and 1.5 DC/AC Inverter Load Ratios
Specifications
Manufacturer | Chint Power Systems |
Model | CPS SCA60KTL-DO/US-480 |
Year | 2020 |
Stock Number | ED00433 |
