No longer available

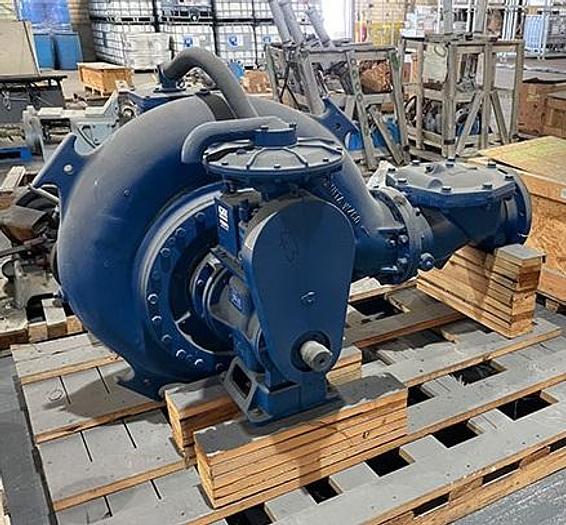

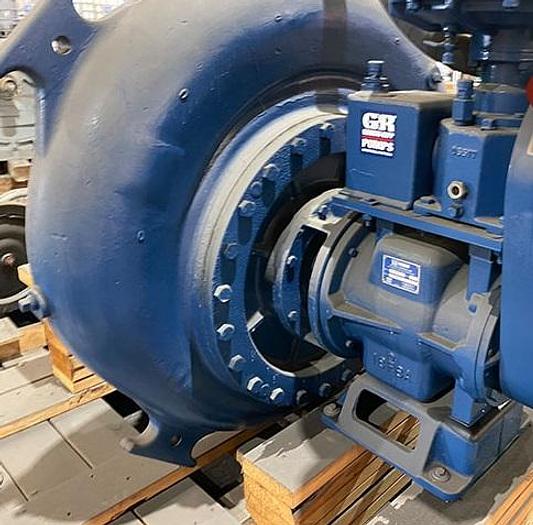

Gorman-Rupp Pumps RP Series RP10B60 Centrifugal Pump

Available quantity

1

Location

Colorado

Description

Gorman-Rupp Pumps RP Series RP10B60 Centrifugal Pump

Surplus new

74" L X 52" W X 45" H

3200 lbs

PUMP SPECIFICATIONS

Size: 12" x 10" (305 mm x 254 mm) Flanges.

Casing: Gray Iron. Maximum Operating Pressure 163 psi (1124 kPa).*

Enclosed Type, Two Vane Impeller: Gray Iron 30.

Handles 4 1/4" (108 mm) Diameter Spherical Solids.

Impeller Shaft: Stress-Proof Stainless Steel.

Replaceable Wear Ring: Gray Iron 30.

Back Plate: Gray Iron 30.

Bearing Frame: Gray Iron 30.

Seal: Cycloseal Type, Mechanical w/Run-Dry Oil-Lubrication System.

Silicon Carbide Rotating Face. Tungsten Titanium Carbide Stationary

Face. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stain

less Steel 18-8 Cage and Spring. Maximum Temperature of Liquid

Pumped 160 F (71 C).*

Shaft Sleeve: Chrome Plated Stainless Steel 416.

Priming Chamber: Gray Iron 30 Housing w/Stainless Steel Float and

Linkage.

Vacuum Hose: EPDM.

Discharge Check Valve: Gray Iron 30 Housing; Buna-N Flapper.

Radial Bearing: Single Row Ball.

Thrust Bearings: Two Single Row Ball.

Bearing Lubrication: Grease.

Flanges: Gray Iron 30.

Gaskets: Vegetable Fiber, Resistant Synthetic Rubber.

O-Rings: Buna-N.

Hardware: Standard Plated Steel.

Seal Oil Reservoir Sight Gauge.

Standard Equipment: Belt-Driven 50 CFM Vacuum Priming Pump.

Positive Seating Vacuum Priming Valve. Discharge Check Valve

Specifications

ManufacturerGorman-Rupp
ModelRP10B60
Stock NumberED00615
