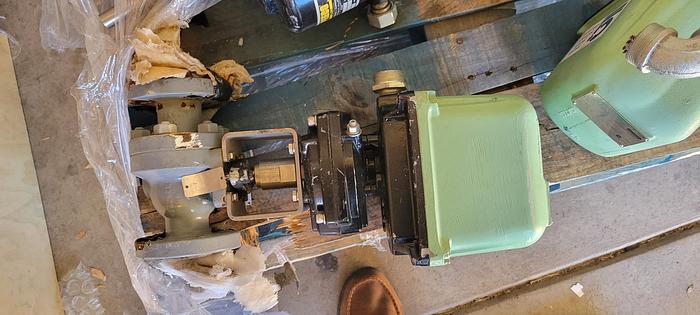

RCS Dresser SURE 24-10-CW Electric Valve Actuator

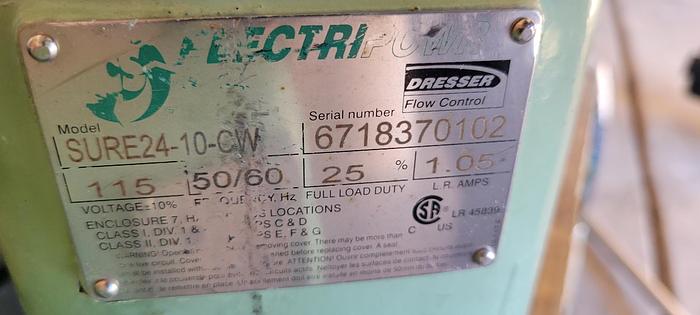

Electrical Power Dresser Model SURE 24-10-CW

115 V

50/60 HZ

The CW configuration, considered a Fail Closed unit, will rotate the output shaft in the clockwise direction as viewed from above when loss of power occurs.

Exceptional automation solutions for valve, damper and equipment manufacturers as well as end users in the commercial, industrial, marine and power industries.

Model Sure 24, Sure 25 Typical Application For on/off and modulating control of: • Part turn ball, butterfly, plug valves or rotary dampers when emergency shutdown or shutoff capability is required in the event of a loss of power. Temperature Range Standard: -40°F to +150°F -40°C to +65°C Optional: -60°F to +150°F -50°C to +65°C Optional: Compliance to NFPA 130, capable of operation after exposure to ambient temperature of 482°F (250°C) for a minimum of one (1) hour. fact sheet Voltage 115 VAC, 1 Phase, 50/60 Hz. 230 VAC, 1 Phase, 50/60 Hz. Torque Range 300 pound inches spring end (34 newton meters) Speed Range 5 and 10 seconds for 90° revolution, motor operation 2 to 5 seconds, spring operation Spring Helical torsion spring, spring steel, XYLAN® coated Special Features AC Voltages 2 – SPDT Switches, PTC Heater, Motor Brake
