2011 Hartzell A65-499AV265STFQNO Direct drive/ Adjustable Pitch Vaneaxial Fan

A65-499AV265STFQNO

10HP 870 RPM

575 Volt 60Hz 3 Phase T

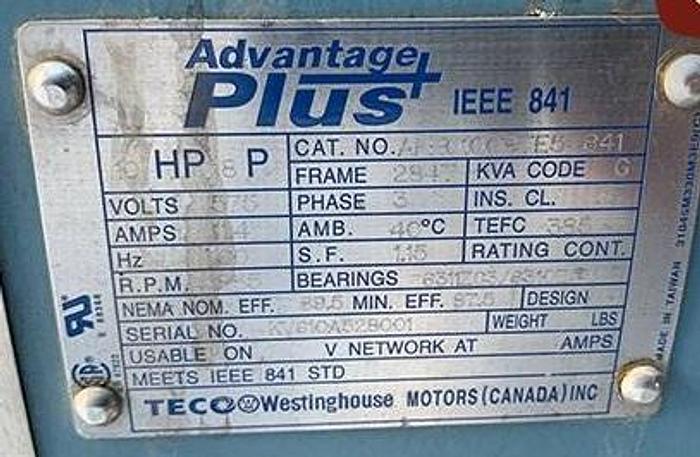

eco Westinghouse TEFC IEEE841 Prem EFF FR284T

17,979.9 L/S @125.076 PA

2,450 Lbs Each /1,111 KG

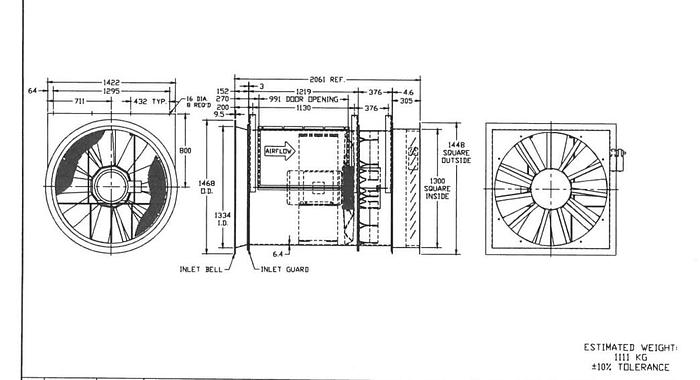

Dimension : 82inches long X 57 inches X 56 inches

Units are located : Cold Lake Alberta Canada

Air Volume L/sec 17,980

Speed RPM 870

Max Speed RPM 1811

Total Static Pressure : Pa(g) 125

 Fan Diameter 1245MM

Blade Angle 26.5 Adjustable

 80dBa From inlet of Fan @ 1 Meter

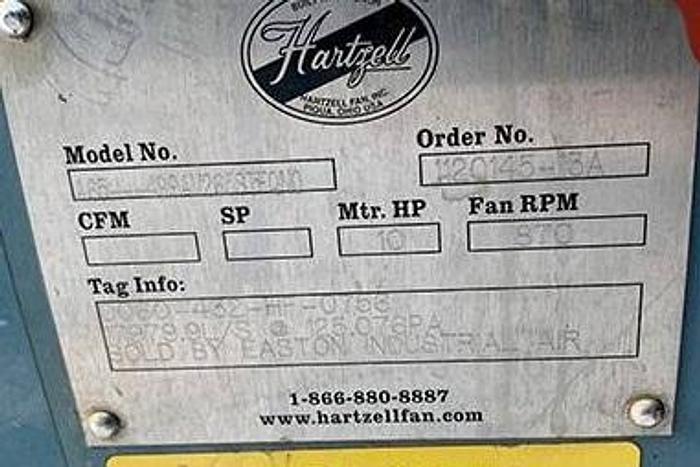

Manufacture Hartzell

Model A65-499AV265STFIN5 -4

Electric Motor NEMA4 Enclosed

 Bearing life Minimum : 200,000 hours
