Cummins/Onan 100kW Emergency Standby Generator
Specifications
| Manufacturer | Cummins |
| Model | Dsgaa1204583 |
| Year | 2012 |
| Stock Number | ED00922 |
| Hours | 187 |
| kW Power Rating | 100 |
Description
2012 Pre-Owned Cummins/Onan Package Emergency Standby Generator Set

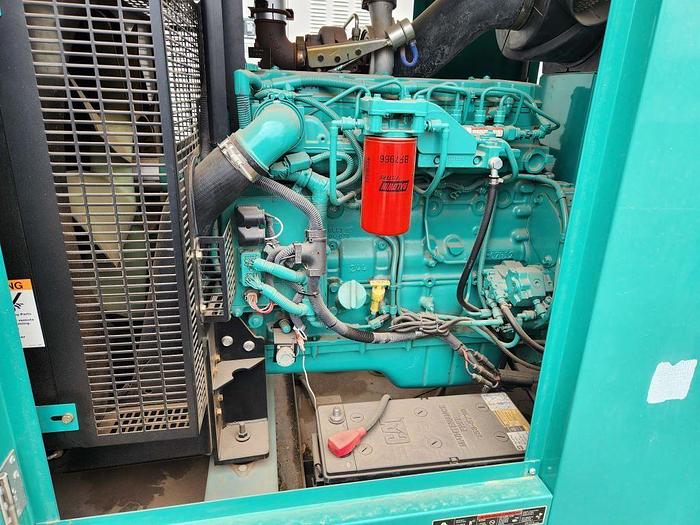

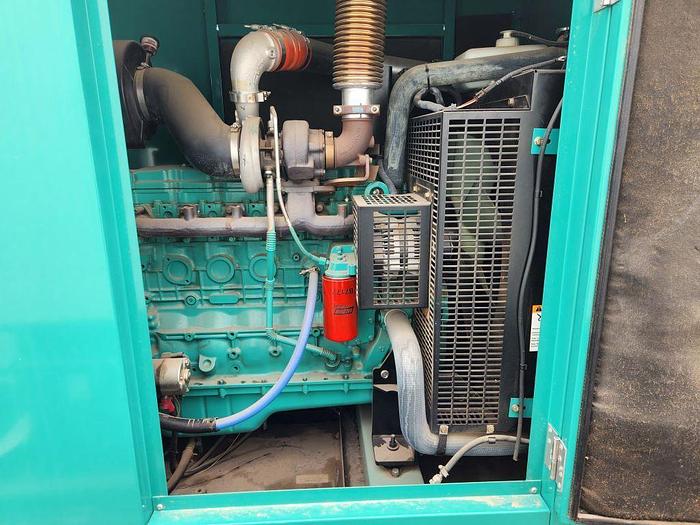

Diesel Engine Model: QSB7-G5 NR3
CA/EPA Certification: Tier 3
Approximately 187 hours since new

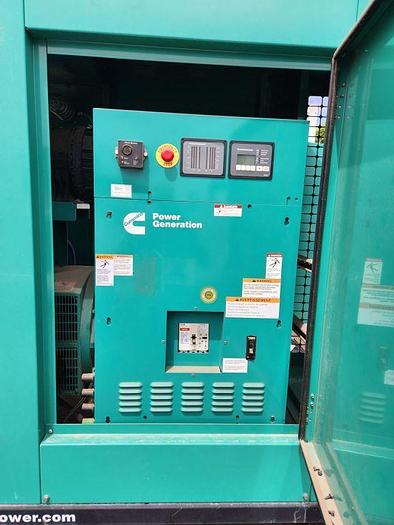

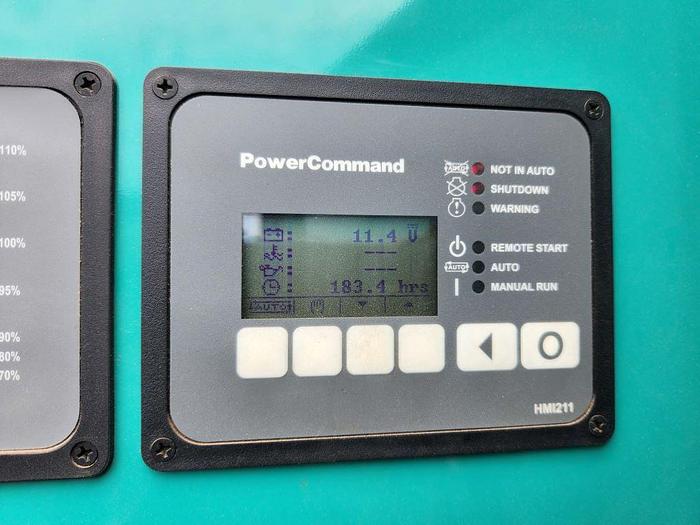

Digital Genset Controller: PowerCommand, Annunciator, NFPA Alarms, Emergency Stop Pushbutton
Generator Voltage 277/480 VAC, Phase 3 Phase, 60Hz
Unit Specification UL2200
Radiator Design Temperature 50°C

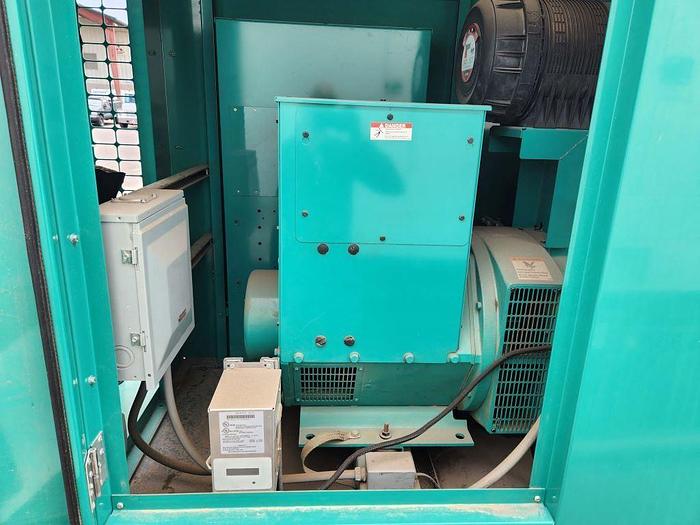

Generator with PMG Excitation (12 Wire)
Temp Rise 130°
Power Output 100 kW

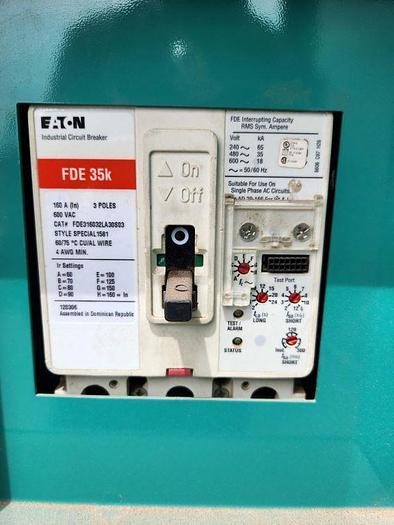

Main Line Circuit Breaker 3 Pole Rated 160AF/150AT 100% LSI Eaton

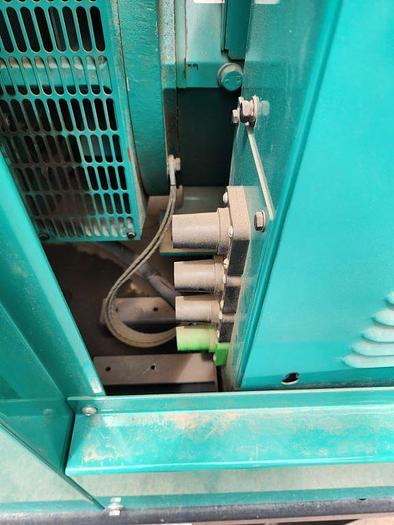

Male Cam-Lok Connectors
Battery Charger – 120VAC Input,12VDC Output, 15 Amps
Belt Driven Alternator – 12VDC

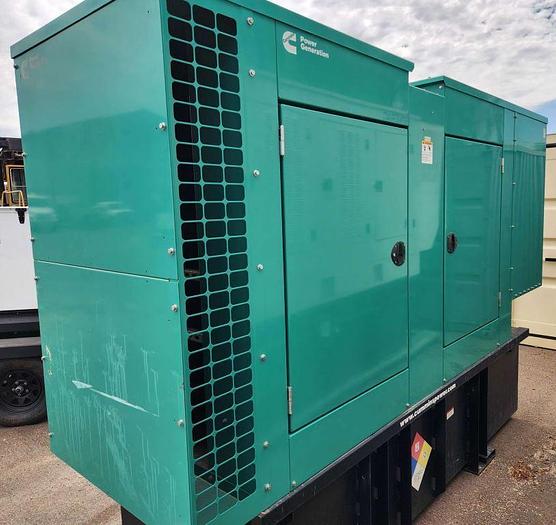

Weather Protective Enclosure
24 HR 308 Gallons UL Double Wall Fuel Base Tank

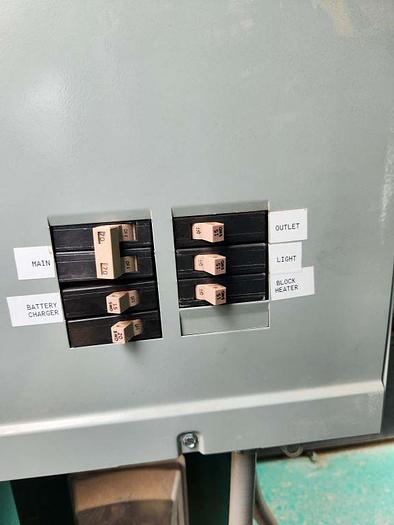

Accessory Distribution Panel w/Breakers - (Main, Battery Charger, AC Outlet, Lights, Block Heater)
Fuel Water Separator
