NEW WANCO WSP220 Rental power Tier 3

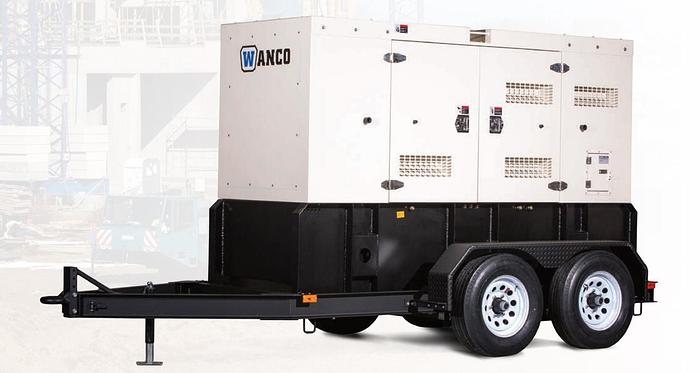

WSP220 WANCO SILENT POWER DIESEL GENERATOR

WANCO | 5870 Tennyson Street, Arvada, Colorado 80003 USA | 303-427-5700 www.wanco.com

ENGINE

 Perkins 1106D-E70TTAG4 diesel engine

• Prime - 198kVA / 158kW @1800 RPM

• Standby – 220kVA / 176kW @ 1800 RPM

• 4 Stroke Direct Injection 7.0 L Turbo

• EPA Tier 3

 10 gauge steel double wall fuel tank

• 290 gal. (1160 L) capacity

• 24.0 hr. run time - 100% load

• 29.90 hr. run time - 75% load

• 43.60 hr. run time - 50% load

• 81.11 hr. run time - 25% load

• Fuel tank built into skid of generator set

• 120% Containment

• Fork lift Pockets

• Compatible JP5,7,8, NATO F34, 63 and Jet A, A1 with appropriate fuel additive

 Oversized Cooling system

 Radiator and oil drains plumbed to exterior

 Vibration dampers isolate engine/generator from frame

 Perkins Factory dual stage air filter

 Air cleaner restriction indicator

 60 Hz engine/generator - 50 hertz configuration available

 Electric isochronous governing

 Idle switch programmed in DeepSea panel

 Standard Block Heater Level 1 Cold Weather package for “Hot Start”

GENERATOR

 ECO38 1S4A Mecc Alte "Maux PMG" 300% motor starting capability

• Brushless

• 4 pole

• Class H insulation

 Automatic Voltage Regulation +/- 0.5% with upgraded DER1 voltage regulator

SYSTEM OUTPUTS

 3 position selector switch with lock out

• Single phase - 120/240V Zig Zag

• Three phase - 120/208V Low Wye

• Three phase - 277/480V High Wye

• 277/480 Volt, three phase – 238.2 amps standby

• 120/208 Volt, three phase – 549.6 amps standby

• 120/240 Volt, Single phase – 358.3 amps standby
