NEW WANCO WSP220 Rental Silent Power Tier 3 Diesel Generator Set
Description
Next Delivery June 2022 If ordering in the month of December2021
WSP220 WANCO SILENT POWER DIESEL GENERATOR

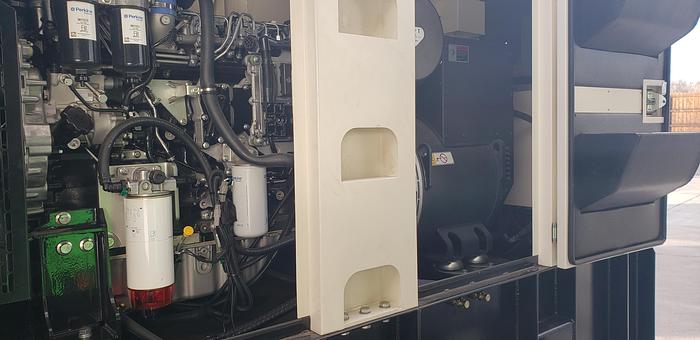

ENGINE

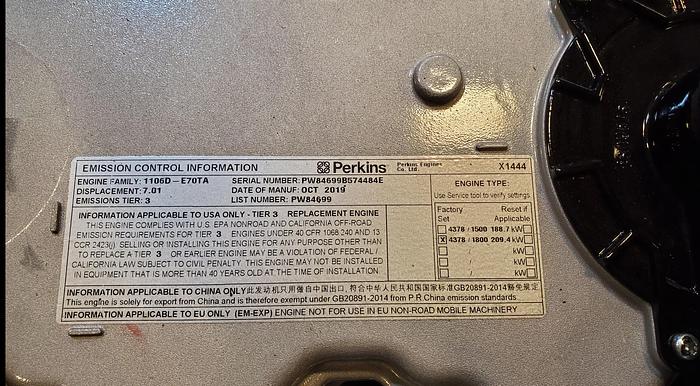

- Perkins 1106D-E70TTAG4 diesel engine
- Prime - 198kVA / 158kW @1800 RPM
- Standby – 220kVA / 176kW @ 1800 RPM
- 4 Stroke Direct Injection 7.0 L Turbo
- EPA Tier 3
- 10 gauge steel double wall fuel tank
- 290 gal. (1160 L) capacity
- 24.0 hr. run time - 100% load
- 29.90 hr. run time - 75% load
- 43.60 hr. run time - 50% load
- 81.11 hr. run time - 25% load
- Fuel tank built into skid of generator set
- 120% Containment
- Fork lift Pockets
- Compatible JP5,7,8, NATO F34, 63 and Jet A, A1 with appropriate fuel additive
- Oversized Cooling system
- Radiator and oil drains plumbed to exterior
- Vibration dampers isolate engine/generator from frame
- Perkins Factory dual stage air filter
- Air cleaner restriction indicator
- 60 Hz engine/generator - 50 hertz configuration available
- Electric isochronous governing

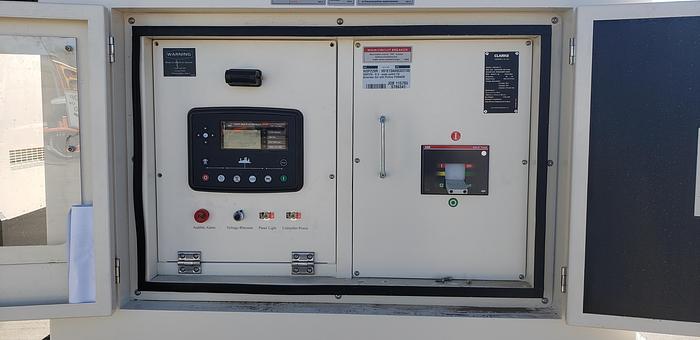

- Idle switch programmed in DeepSea panel
- Standard Block Heater Level 1 Cold Weather package for “Hot Start”
GENERATOR
- ECO38 1S4A Mecc Alte "Maux PMG" 300% motor starting capability
- Brushless
- 4 pole
- Class H insulation
- Automatic Voltage Regulation +/- 0.5% with upgraded DER1 voltage regulator

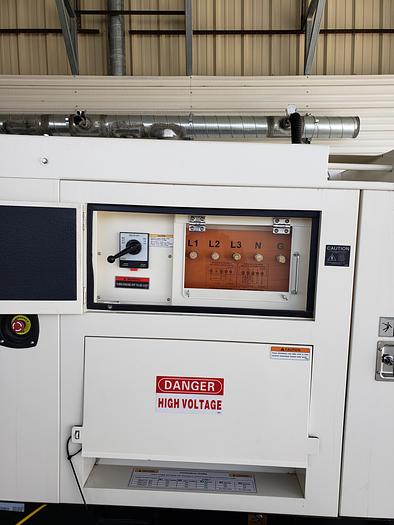

SYSTEM OUTPUTS

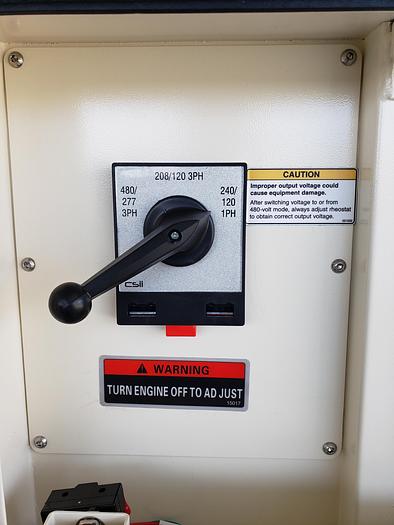

3 position selector switch with lock out
• Single phase - 120/240 V Zig Zag
• Three phase - 120/208 V Low Wye
• Three phase - 277/480 V High Wye
• 277/480 Volt, three phase – 238.2 amps standby
• 120/208 Volt, three phase – 549.6 amps standby
• 120/240 Volt, Single phase -358.3 amps standby
Specifications
Manufacturer | Wanco |
Model | WSP220 |
Year | 2021 |
Stock Number | EM00356 |
