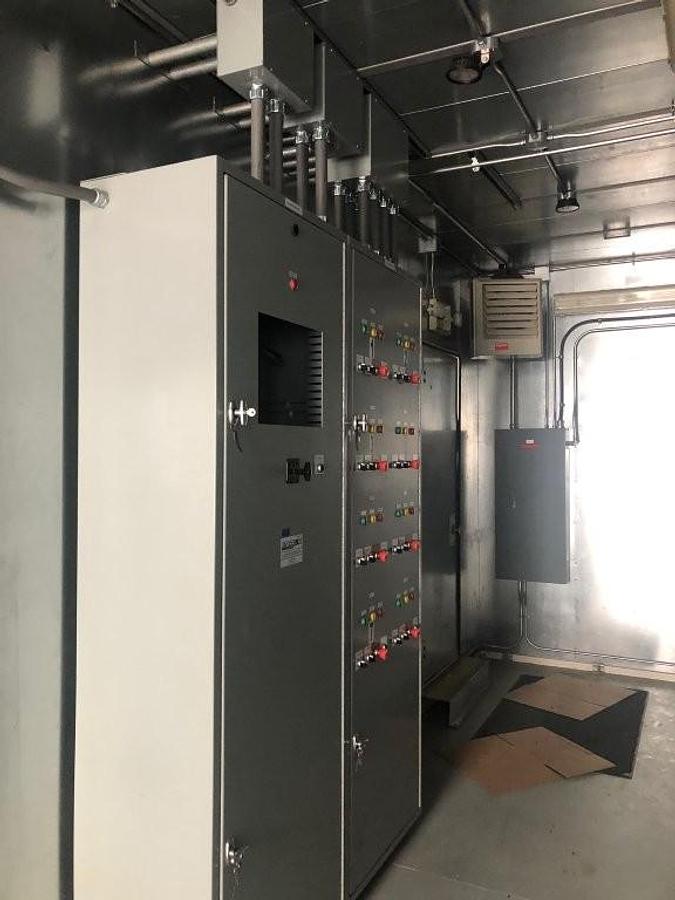

AUTOMATIC PARALLEL SWITCHGEAR LOAD SENSE DEMAND - PRIME POWER

• Rigidity wind test equal to 125 MPH
• Roof load equal to 60 lbs. per sq ft.
• Floor load equal to 200 lbs. per sq. ft.
• Rain test to 4-inches per hour

Control System Construction (16 Unit System)

Cubicle 1 – Generator 1 - 8

8 - Lot of auxiliary relays as required for interfacing with generator set control panel.

8 - Circuit breaker control switch, ESCO 24 series, with positions as required.

8 - Set of aux. breaker trip and close relays, contact rating as required.

8 - Set of circuit breaker position LEDs.

8 - Emergency stop push button.

8 - Best battery diode.

4 - Red Lion Communications Module. (Two generators each module)

1 - Lot of misc. wire, lugs, nameplates, etc.

8 - Add control relays (4PDT) and bases with coils wired to the terminal points for the incoming

‘fire alarm’ signals from each generator enclosure. One (1) normally open contact from each

relay to be interconnected to new terminal points (16) in the system cubicle. (Added in

Change Order
