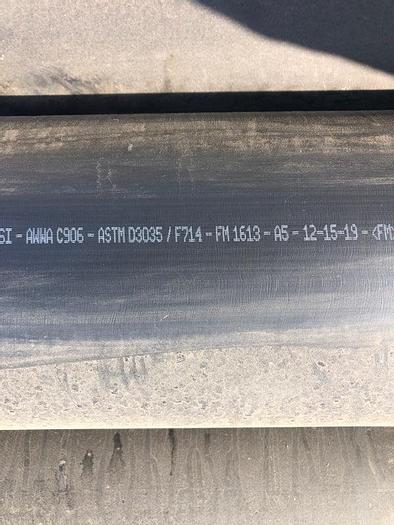

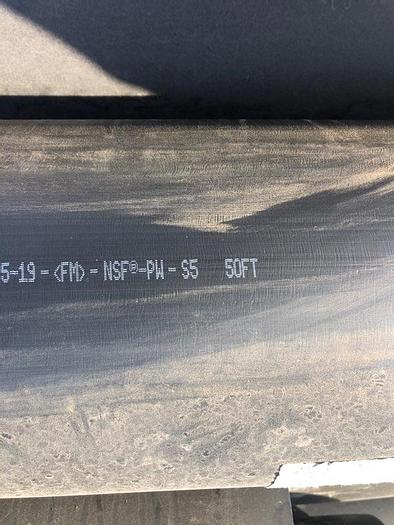

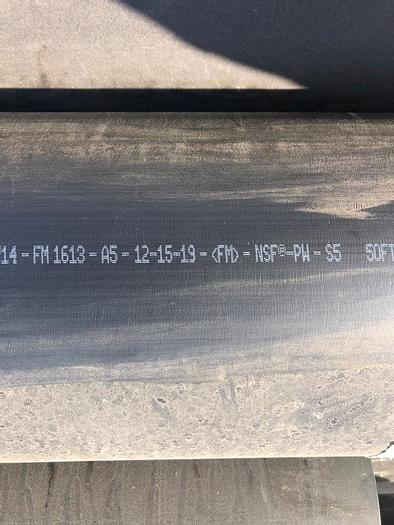

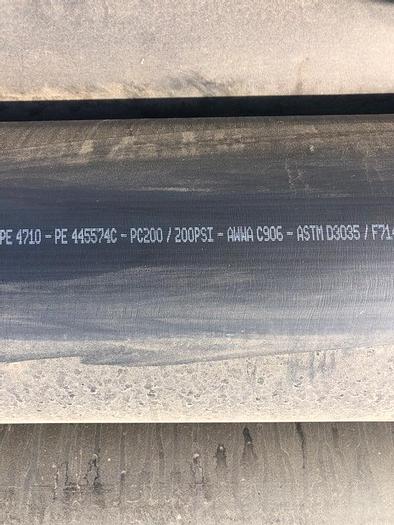

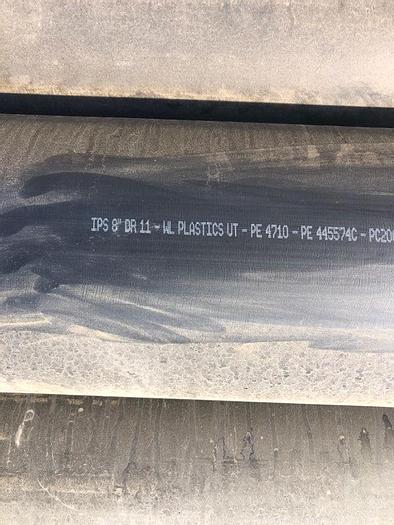

IPS 8" DR11-WL Plastics -PE4710-PE 445574C-PC200PSI - AWWA C906- ASTMD3035 / F714 -FM 1613-A5 -12-15-19- (FM)-NSF-PW-S5 50FT
No longer available
Featured
Specifications
| Model | HDPE 8" DR11 |
| Year | 2019 |
| Stock Number | EM00368 |
| Total | 6,800 Ft available |
| * End Connection | IPS |
| * Finish | Black |
| * Length | 40 Foot |
| * Material | HDPE |
| * Material Specification | ASTM F714/D3035 |
| * Nominal Pipe Size | 8 Inch |
| * Pressure Rating | 200 PSI |
| * Product Type | Pipe |
| * Schedule | DR 11 |
| * Temperature Rating | 140 Deg F |
| * Thickness | 0.784 Inch |
| * Weight | 8.46 Pound per Foot |
Description
IPS 8" DR11-WL Plastics -PE4710-PE 445574C-PC200PSI - AWWA C906- ASTMD3035 / F714 -FM 1613-A5 -12-15-19- (FM)-NSF-PW-S5 50FT
Technical Specifications
- Applicable Standard: ANSI/NSF 61/14, ANSI/AWWA C901/C906, ASTM D3350 Cell Class 445574C/E, ASTM D2239/D2737/D3035
- Application: Potable Water, Sewer, Drain, Mining, Irrigation and Reclaimed Water
- End Connection: IPS
- Finish: Black
- Length: 40 Foot
- Material: HDPE
- Material Specification: ASTM F714/D3035
- Nominal Pipe Size: 8 Inch
- Pressure Rating: 200 PSI
- Product Type: Pipe
- Schedule: DR 11
- Temperature Rating: 140 Deg F
- Thickness: 0.784 Inch
- Weight: 8.46 Pound per Foot
50 Ft Sections
Total: 6,800 Ft available
