1999 Caterpillar 3508-4160 Volt Power Module with Breaker and utility Swithcgear

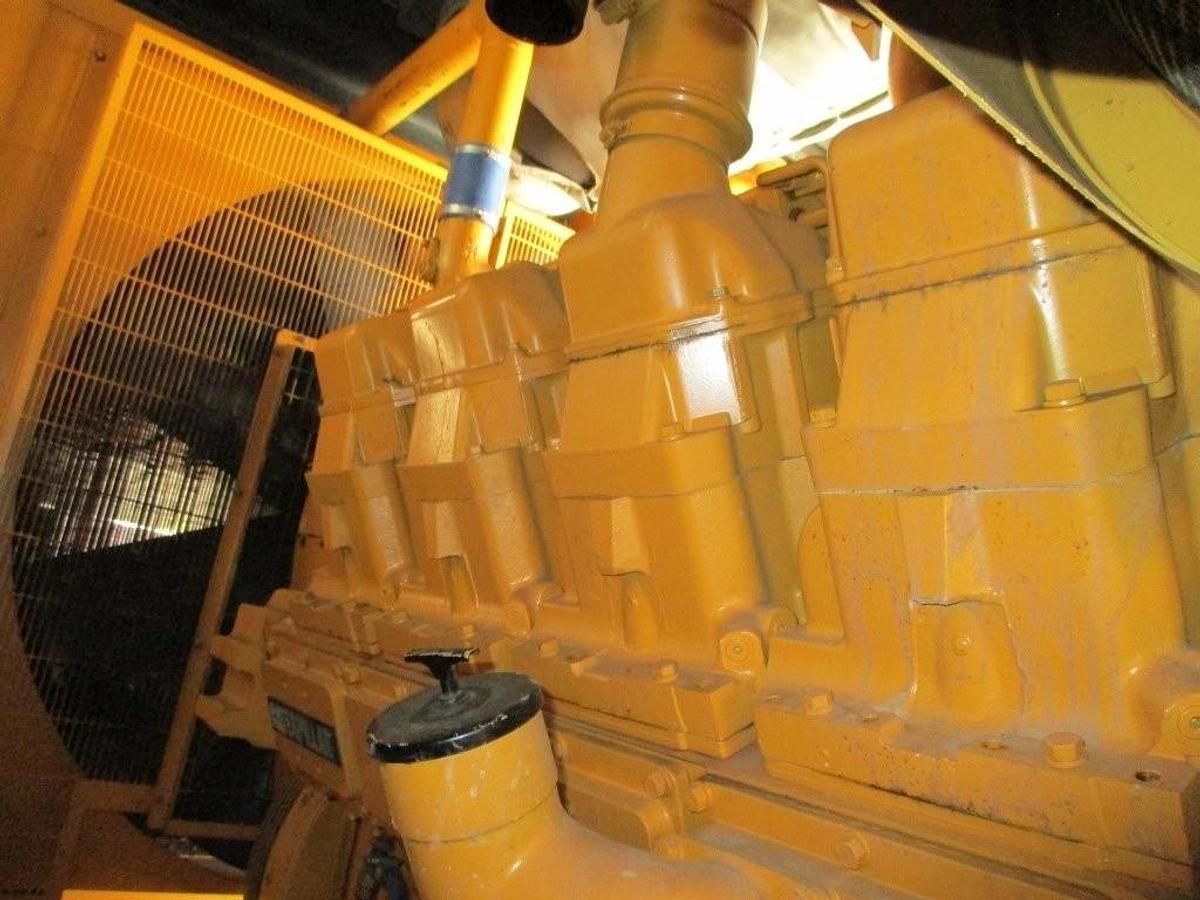

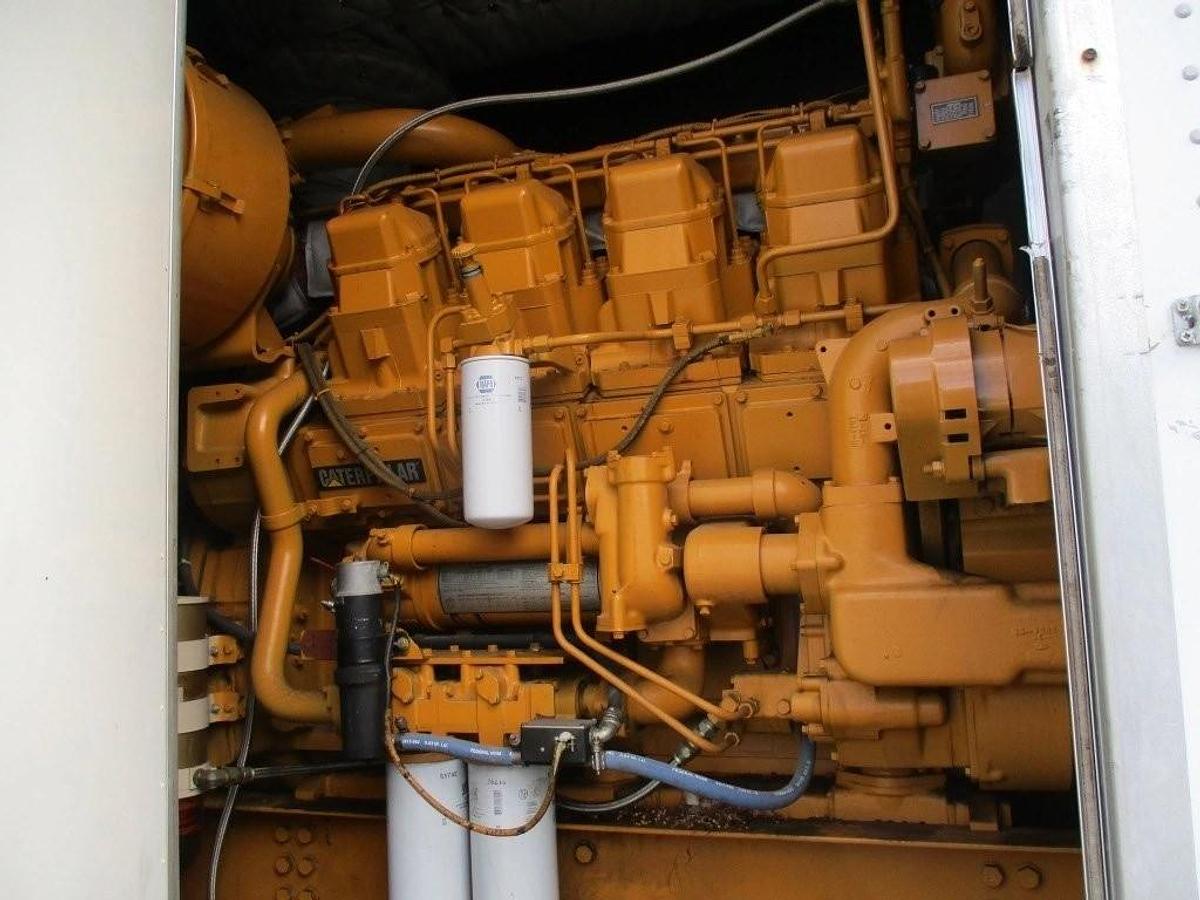

• Cat 3508 DITA engine rated at about 1400BHP prime
• Marathon synchronous generator rated at a nominal 900kW*
• * This set plated to comply exactly with the Irvine   Ranch Water District specification, which is a California State entity and the tags had to reflect exactly the 900 kw specified. However, both the engine and generator will do 1000kw, 1250kVA, 4160/2400 standby.
• Engine hours since new 142

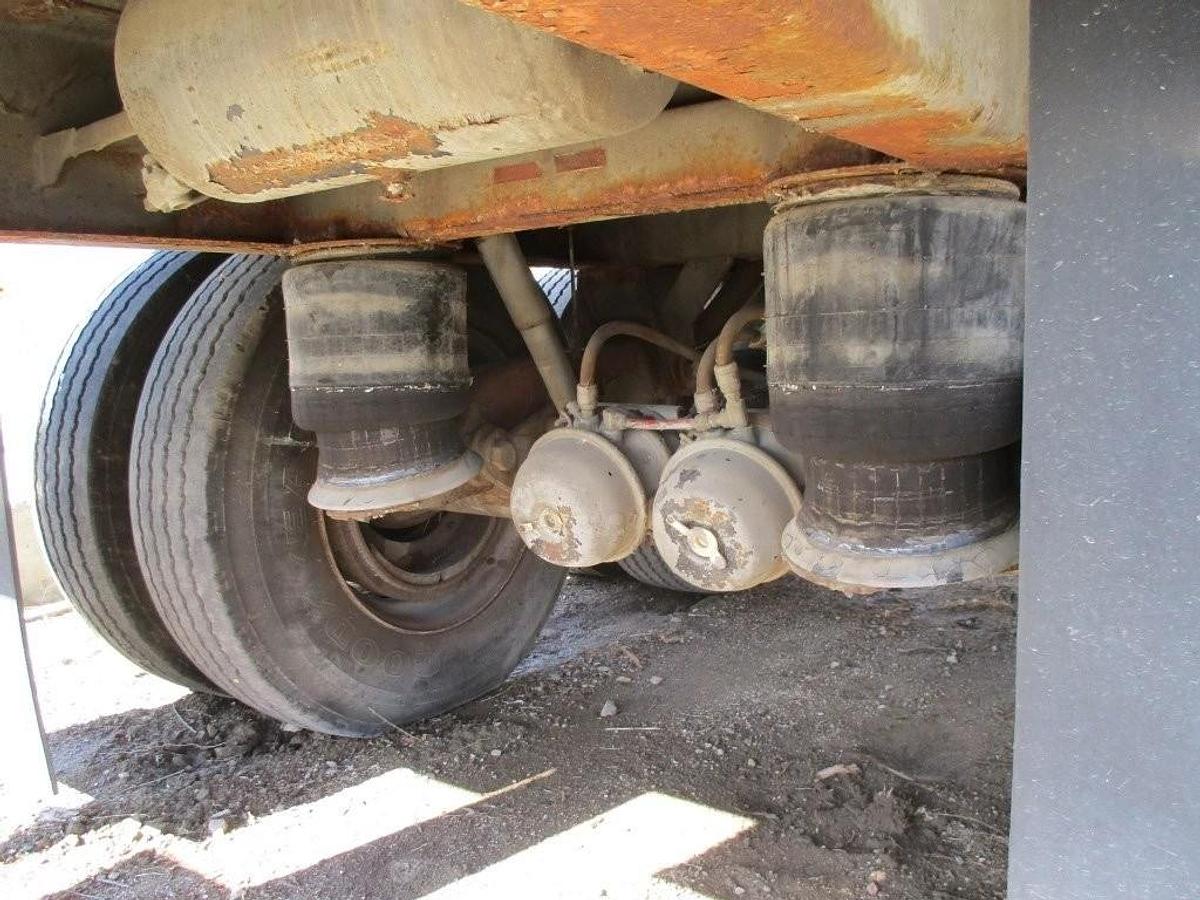

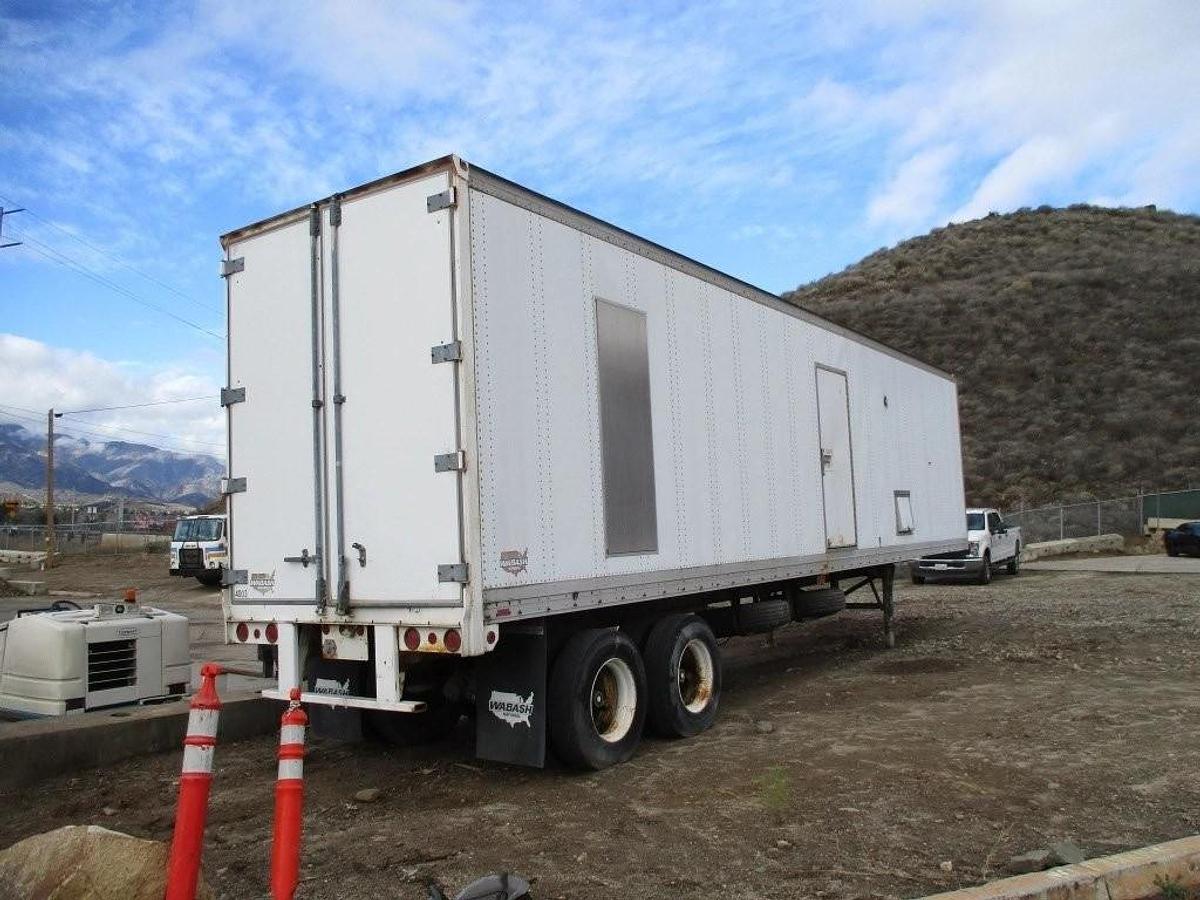

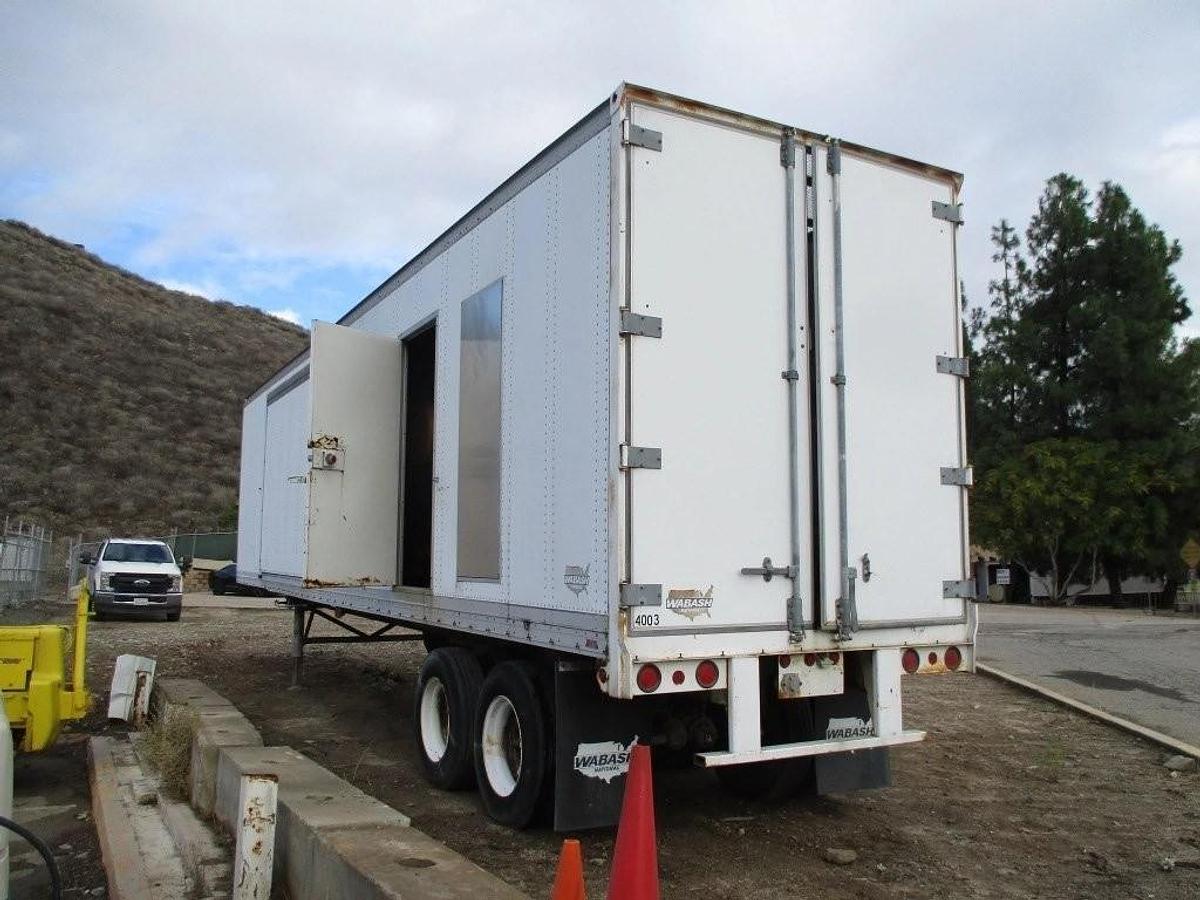

• 40ft dual axle van trailer with air suspension
• 3 onboard fuel tanks with approx. 1000 gallon capacity
• Radiator air-ducting intake and exhaust
• Engine muffler internal, lagged

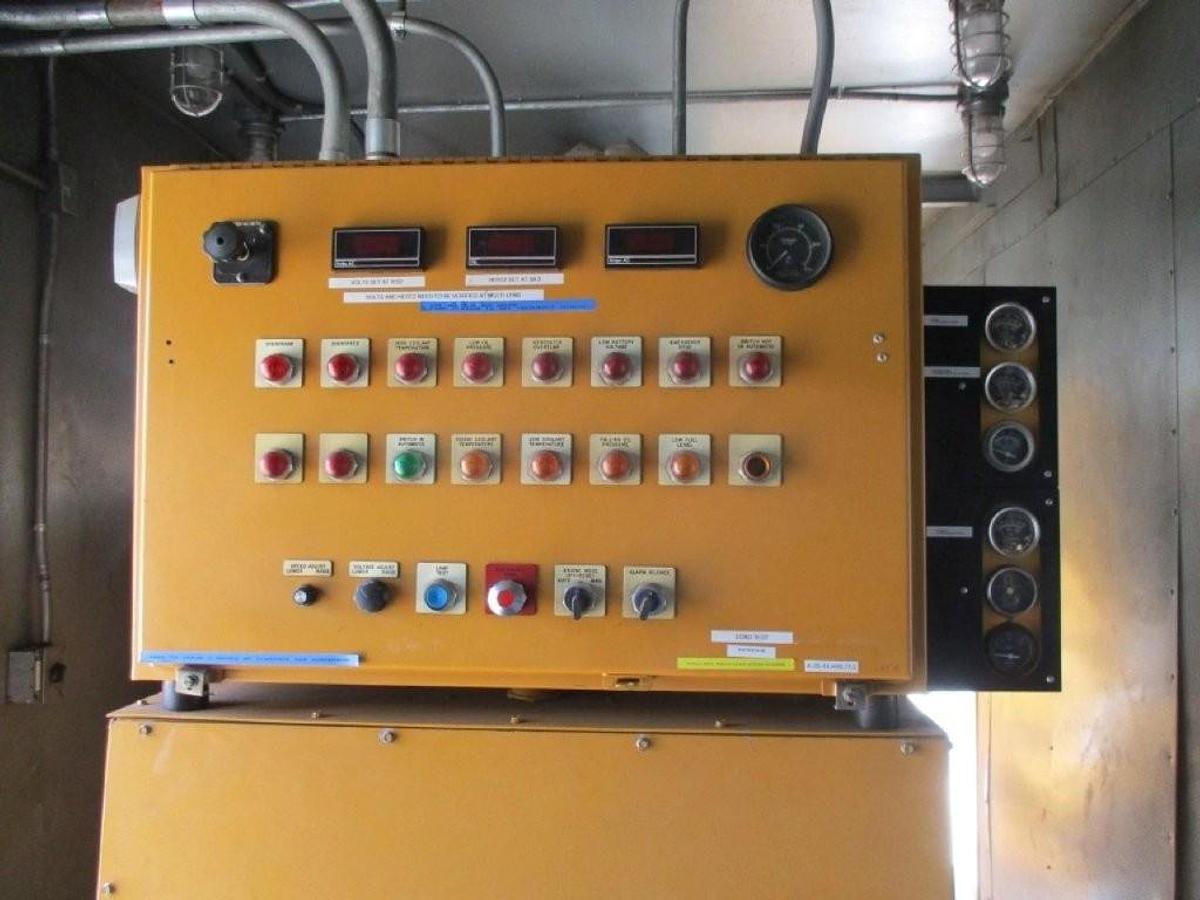

• Ene start-stop controls, automatic
• Speed raise lower
• Voltage raise-lower rheostat
• 5Kv CTs and PTS for 5kV instrumentation
• 200 Amp shore-supply/ generator auxiliary supply transfer switch
• Internal heating and lighting in explosion-proof fixtures
• Local shore supply distribution board
• Engine battery charger
• Engine block heater
• Full registration and tile for CA
• Circuit diagrams

The 1999 Caterpillar 3508-4160 Volt Power Module is a robust generator set ideal for intensive applications. Powered by a Cat 3508 DITA engine, it delivers approximately 1400 BHP at prime, while its Marathon synchronous generator provides a flexible output of 900 kW at prime and can reach up to 1000 kW, 1250 kVA for standby applications. Designed to meet stringent specifications, particularly complying with the Irvine Ranch Water District requirements in California, the unit showcases powerful versatility. Having only 142 hours of operation since new, this generator is installed on a 40ft dual-axle van trailer with air suspension for mobility. It features three onboard fuel tanks totaling an approximately 1000-gallon capacity, allowing for extended operational periods. The module is equipped with critical features such as radiator air-ducting, an internal muffled engine, and automatic start-stop controls, ensuring efficiency and reliability. Additional components include a 200 Amp shore-supply/generator auxiliary supply transfer switch, internal heating and lighting with explosion-proof fixtures, and comprehensive controls for speed and voltage adjustment. With full registration and title for California, this power module is designed to provide substantial performance in demanding environments, offering a reliable solution for industrial power needs.
