2024 EVAPCO 500 Ton Eco Air Sereis EAX-VA9114ZJ320P7-625AXSP08

Air-Cooled Condensers. These units are specifically engineered to change a gas or refrigerant into a liquid (condensation), most commonly utilized in industrial refrigeration or heavy HVAC systems

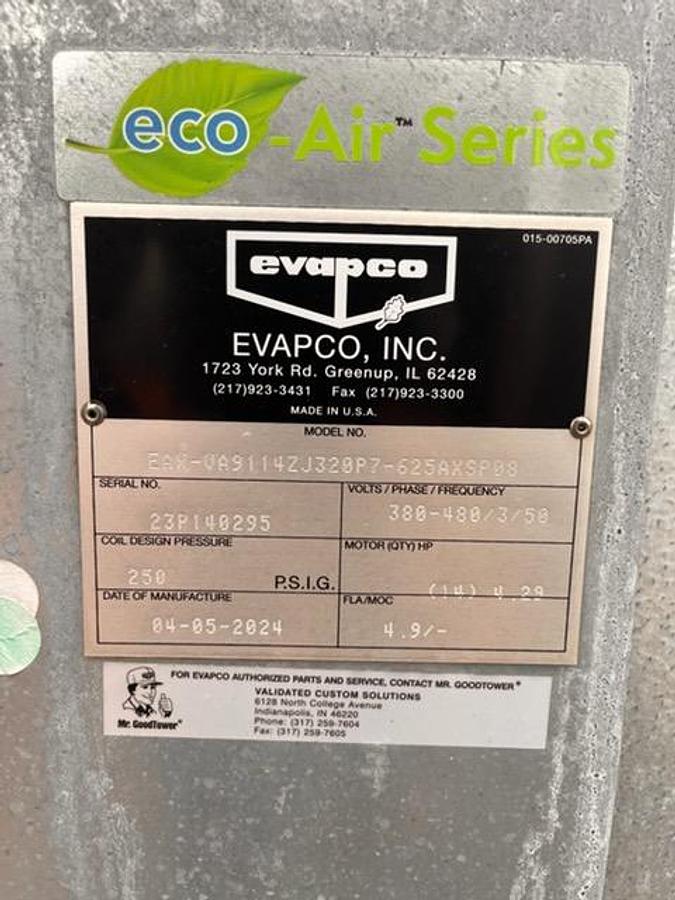

This information is stamped directly on the factory metal tag from EVAPCO, Inc. (manufactured in Greenup, IL, USA):

• Model Number: EAX-VA9114ZJ320P7-625AXSP08
• Serial Number: 23P140295
• Series: eco-Air™ Series
• Date of Manufacture: 04-05-2024 (April 5, 2024)
• Coil Design Pressure: 250 P.S.I.G.

Fan & Motor Specifications

The tag provides the layout and electrical requirements for the unit's cooling fans:

• Motor Quantity: 14 fan motors
• Horsepower (HP): 4.29 HP per motor
• Full Load Amps (FLA): 4.9 A per motor
• Operating Voltage/Phase/Frequency: 380–480V / 3-Phase / 60Hz

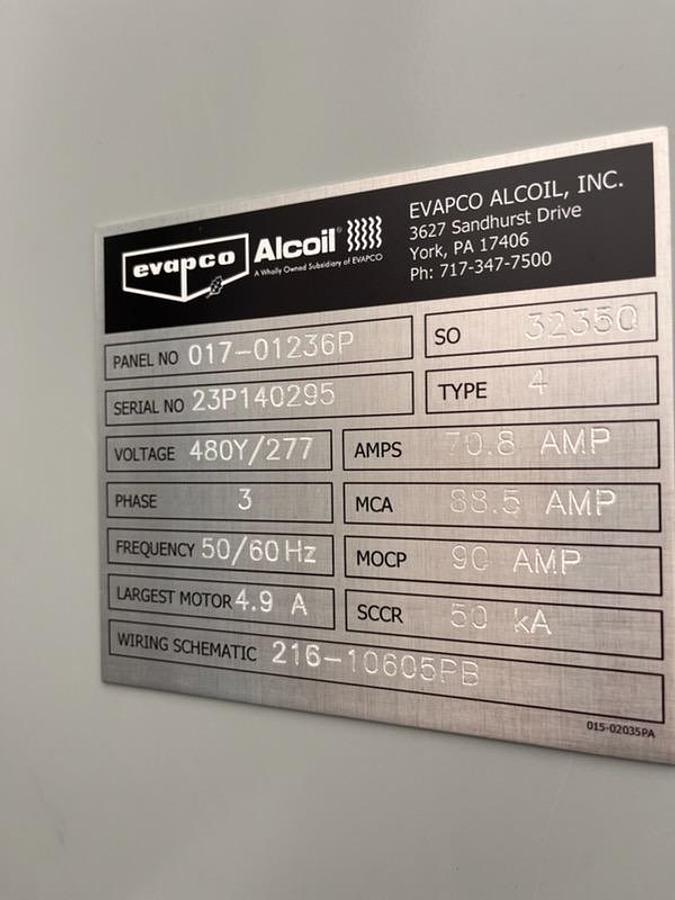

Control Panel & System Electrical Build

According to the factory build details listed on the page for this specific setup:

• Panel Number: 017-01236P
• Enclosure Rating: Type 4 (TYP-4)
• System Voltage: 480Y/277, 3 Phase
• Total System Amperage: 70.8 AMP
• Minimum Circuit Ampacity (MCA): 88.5 AMP
• Maximum Overcurrent Protection (MOCP): 90 AMP
• Short Circuit Current Rating (SCCR): 50kA

Factory Construction & Performance Details

• Materials: Built with 304L stainless steel tubing and aluminum fins for durability and heat transfer efficiency.
• Capacity: Designed to handle 13 to 415 nominal tons of cooling capacity (marketed broadly as a 500-ton unit).
• Safety & Compliance: IBC (International Building Code) compliant with a 1.5 Importance Factor for structural installations.

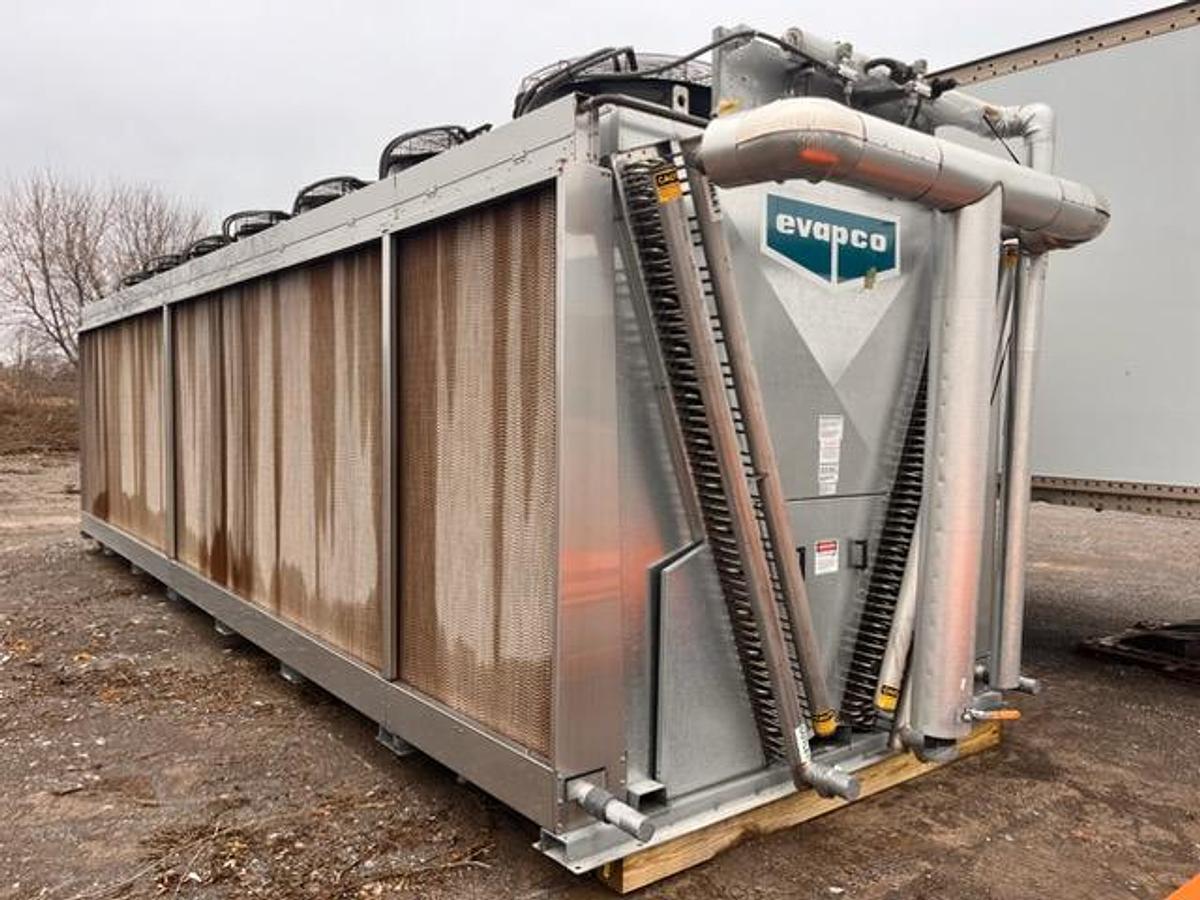

• Design Profile: Shipped as a single low-profile piece designed for reduced water consumption.

The 2024 EVAPCO 500 Ton Eco Air Series Cooling Tower Condenser, model EAX-VA9114ZJ320P7-625AXSP08, offers a sustainable solution for industrial cooling with its design emphasizing reduced water consumption. Built from durable 304L stainless steel tubing and aluminum fins, this unit promises long-lasting performance. Operating on a three-phase system with a voltage requirement of 480 volts, it maintains a power factor of 0.8, supporting capacities from 13 to 415 nominal tons. With 3200 hours of usage, this cooling tower condenser remains a dependable choice, combining efficiency and cost-effectiveness. The design is IBC compliant with a 1.5 Importance Factor, ensuring safety and performance. Its low-profile facilitates easier installation, as it arrives ready to set up in a single piece, minimizing maintenance demands. This unit is ideal for commercial HVAC systems, industrial process cooling, and large-scale refrigeration, making it suitable for hospitals, data centers, and cold storage facilities. The environmentally-conscious design of the Eco Air Series underlines its role in promoting efficiency alongside cooling needs.
