2023 Caterpillar 3512C HD

CAT 3512C HD- Petroluem Engine Generator set. Tier3 2442 BHP-1730kW Prime

Oversize oil pan-1,000 hour oil pan

Stainless Steel Controls Stand

L2 Instrument

EPA-EIAPP Cert.

Lloyds Registers, and Certified

AIR Starting

Marine certified by Loyds

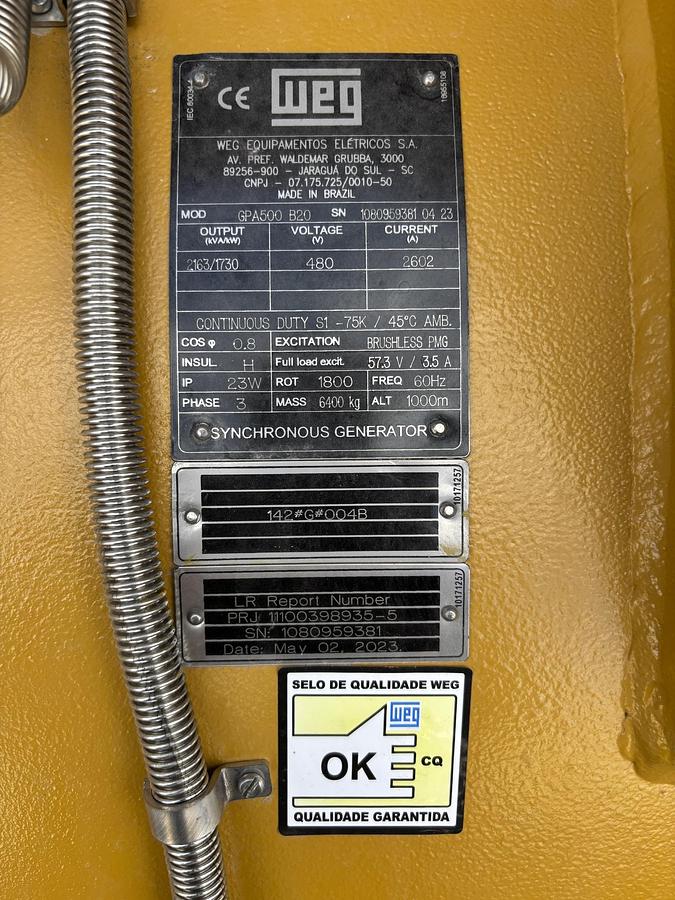

FRAME-GPA500 B20

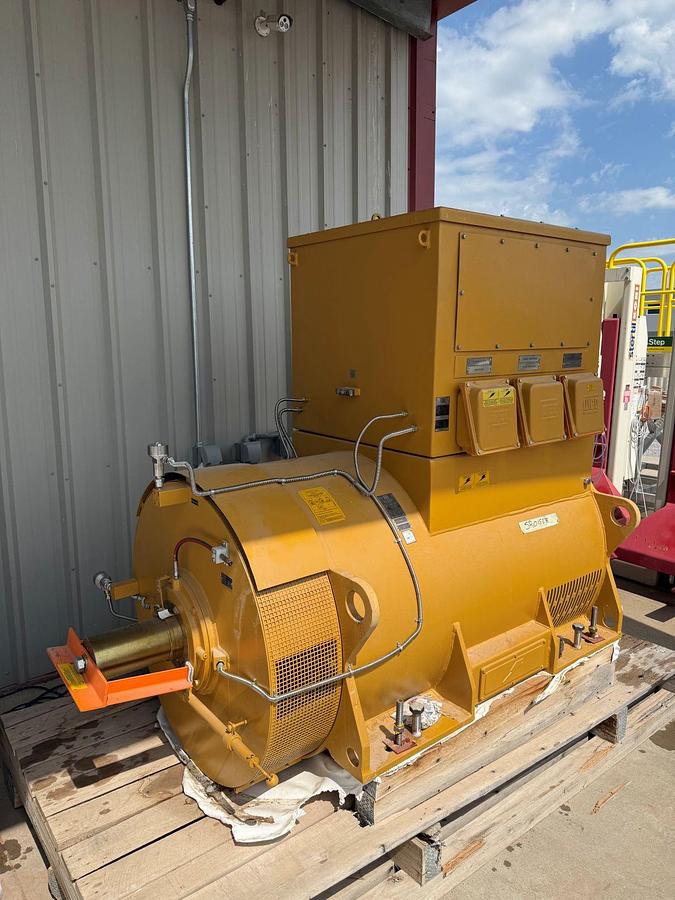

WEG, double-bearing generator end

1730kW Continous Duty

480 Volt

60HZ

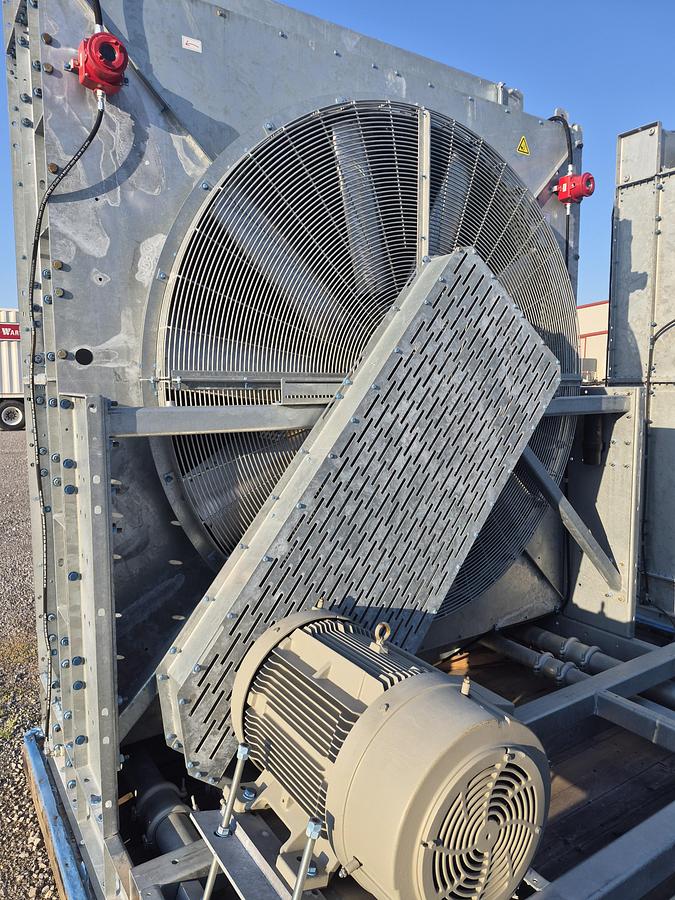

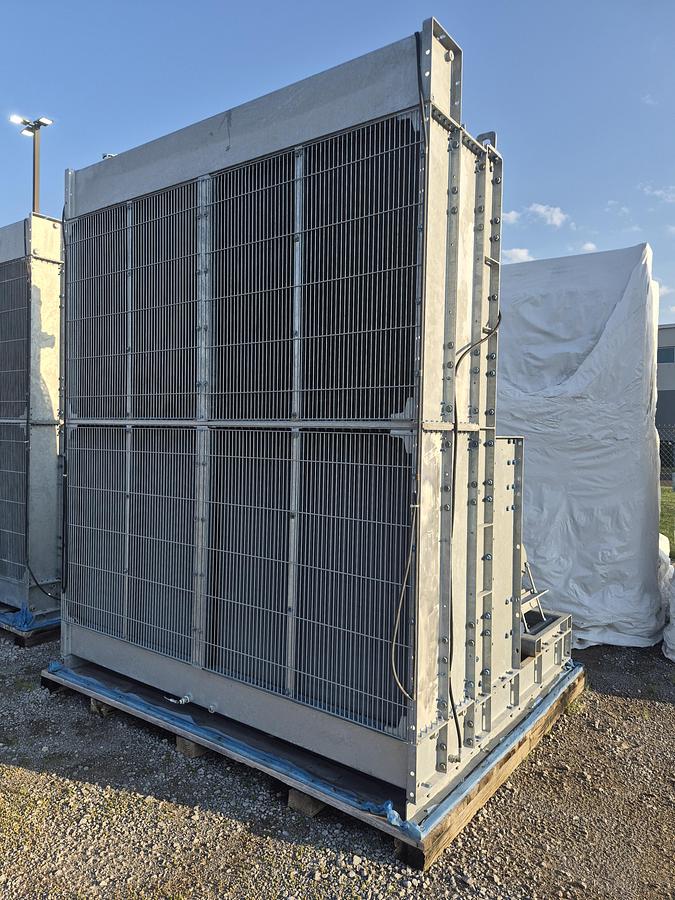

Cooler: Saxon-IEA

Galivinized

JW COOLANT CAPACITY = 101.13 GALLONS

AC COOLANT CAPACITY = 100.78 GALLONS

NAMEPLATE IS STAMPED WITH SERIAL (S.O.) NO. VC072S31

PIPING TO RADIATOR SHOULD BE EXTERNALLY SUPPORTED,

NOT HUNG ON RADIATOR ASSEMBLY, FLEXIBLE CONNECTIONS

SHOULD BE USED WHEN PIPING TO RADIATOR. LUBRICATE MOTOR BEARINGS & FAN DRIVE BEARINGS (2) PER RECOMMENDATION ON IOM MANUAL. CONDUIT BOX LOCATION MAY VARY WITH MOTOR MANUFACTURER.

ALL STEEL PARTS ARE GALVANIZED. ALL CORE FINS ARE SOLDER COATED.

ALL FASTNERS ARE XYLAN COATED CENTER OF GRAVITY SHOWN FOR DRY WEIGHT OF THE UNIT ONLY.

IMPORTANT JW & AC INFO: MAX. OPERATING PRESSURE: 20 P.S.I. MAX. OPERATING TEMPERATURE: 225°F

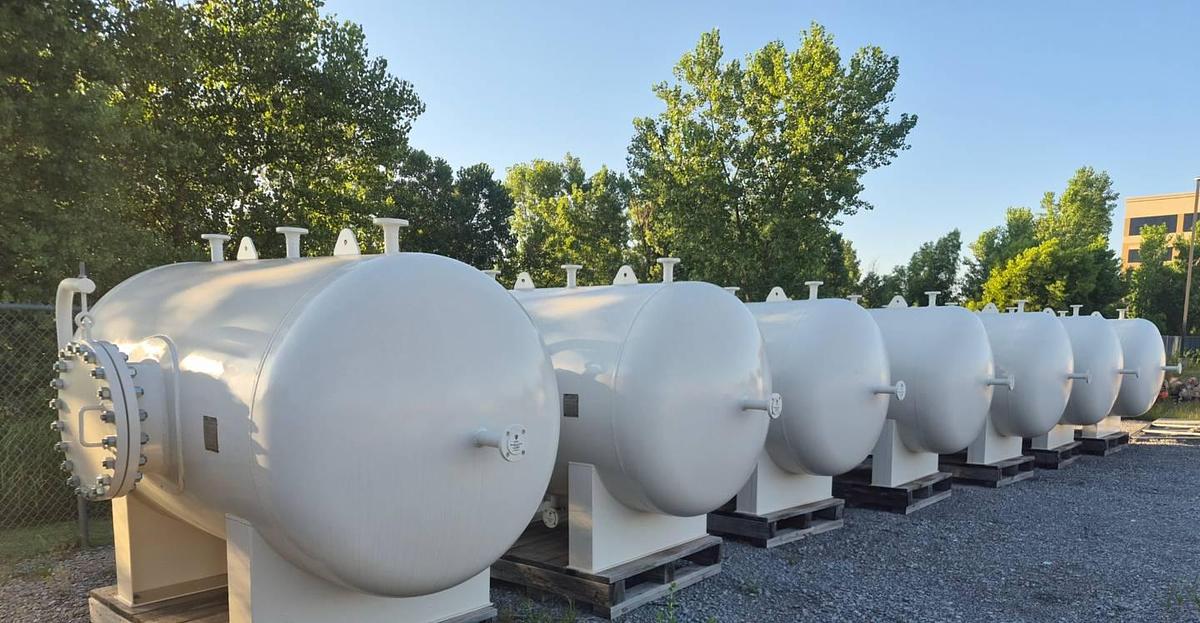

Receiver tanks

(2) tank base skids

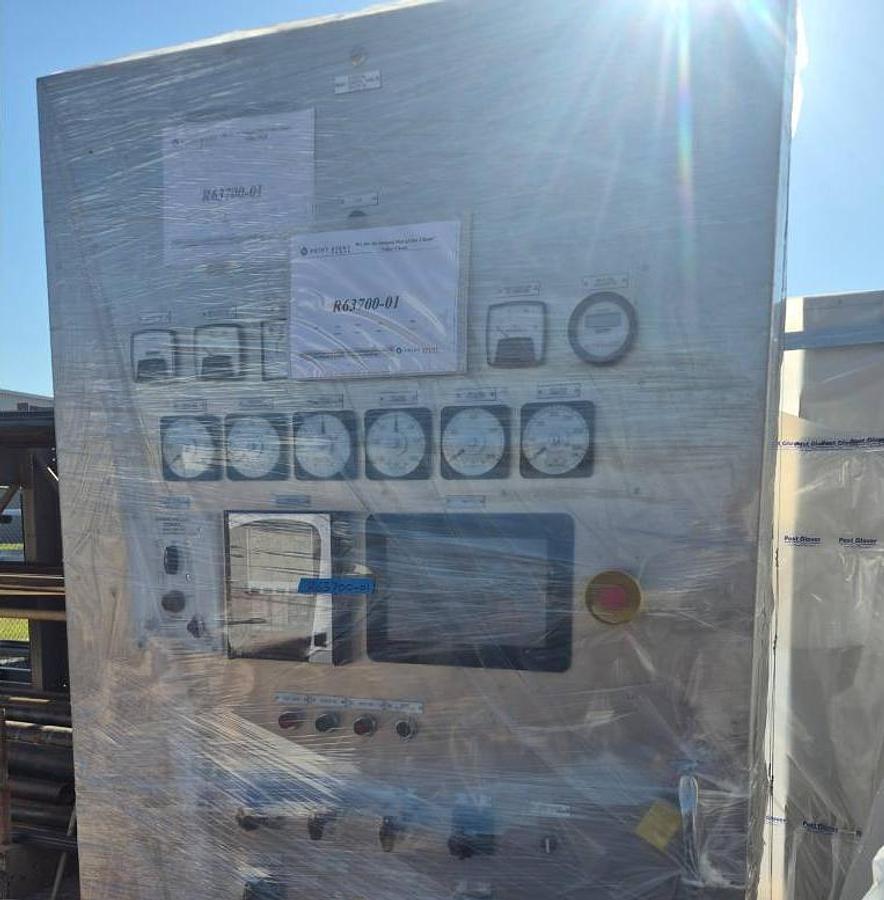

Point Eight panels/components

Jib Cranes

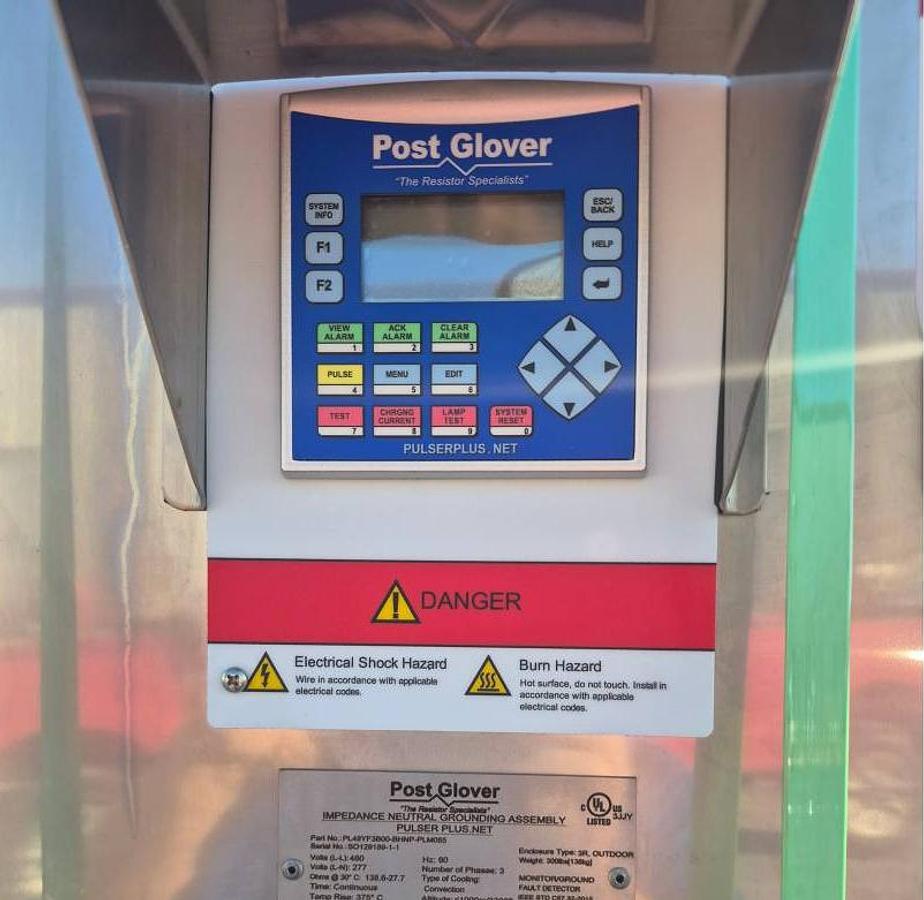

Grounding Cabinets (Post Glover)

Spark Arrestors

Air Stops

Heat Exchangers

Couplers

Water Separators

And assortment of items associated with these packages.
